Description
Product Code: B45

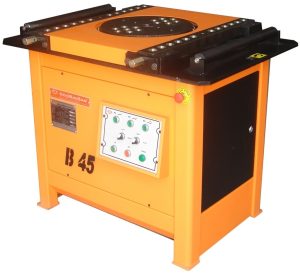

The RMCS B45 Rebar Bender is very operator friendly and extremely easy to use.
Rebar Bending is achieved via mechanical power transfer. The control system consists of an electrical automation system. This system enables the operator to make bending angle adjustments. The machine can make bending angle to the left or the right. Bending can be controlled manually or automatically and three bending angles can be set at any one point in time.
B45 Rebar Bender Specifications:
| Width | 84cm |
| Length | 110cm |
| Height | 85cm |
| Motor Power | 4,0 kw |
| Operating Volts | 380V |
| Weight | 450Kgs |
Bending Capacity of the B45 Rebar Bender:
| Steel Strength | Steel Strength | Steel Strength | |
| Bars | 45 kg/mm² | 65 kg/mm² | 85 kg/mm² |
| 1 | Ø 40 | Ø 32 | Ø 32 |
| 2 | Ø 25 | Ø 25 | Ø 16 |
Standard Equipment supplied with the B45 Rebar Bender:
- 5 Bending Rollers
- 5 Bending Pins
- 1 Stirrup Pin
- 1 Straight Pin
- 1 Stirrup Bending Retainer
- 1 Foot Pedal
- 1 Adjustment Spanner
