Description
Product Code: MG20B

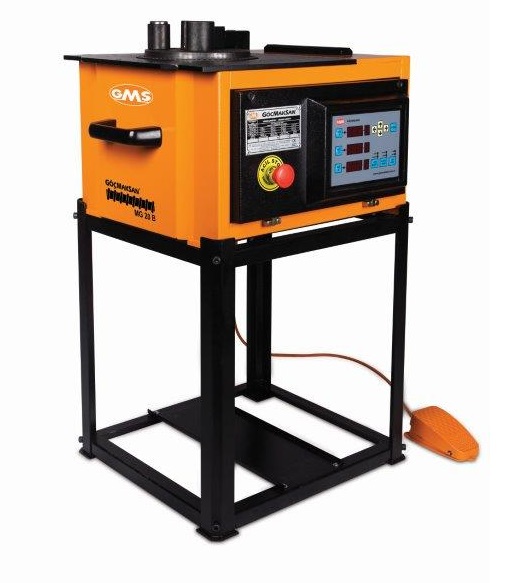

The RMCS MG20B Rebar Bender is very operator friendly and extremely easy to use. At a light weight of 59 kilograms, it is portable and can be moved around quite easily.
Rebar Bending is achieved via mechanical power transfer. The control system consists of an electrical automation system. This system enables the operator to make bending angle adjustments. Bending can be controlled manually or automatically and three bending angles can be pre-set at any one point in time.
MG20B Rebar Bender Specifications:
| Width | 45cm |
| Length | 60cm |
| Height | 32cm |
| Motor Power | 1,1 kw |
| Operating Volts | 220V |
| Weight | 59Kgs |
Bending Capacity of the MG20B Rebar Bender:
| Steel Strength | Rebar Ømm & Number of Bars |
| 45 kg/mm² | Ø20 x 1 Ø16 x 1 Ø12 x 3 Ø10 x 4 |
| 65 kg/mm² | Ø16 x 1 Ø12 x 2 Ø10 x 3 Ø8 x 4 |
| 85 kg/mm² | Ø12 x 1 Ø10 x 2 Ø8 x 3 Ø6 x 5 |
Standard Equipment supplied with the MG20B Rebar Bender:
- 2 Straight Pin
- 1 Fixed Pin
- 1 Fixed Shim
- 2 Straight Pin
- 3 Stirrup Heads
- 3 Bending Sleeves
- 3 Switch Pins
- 1 Zero Adjustment Pin
- 1 Foot Pedal
- 1 Table
