Description
Product Code: MG20B

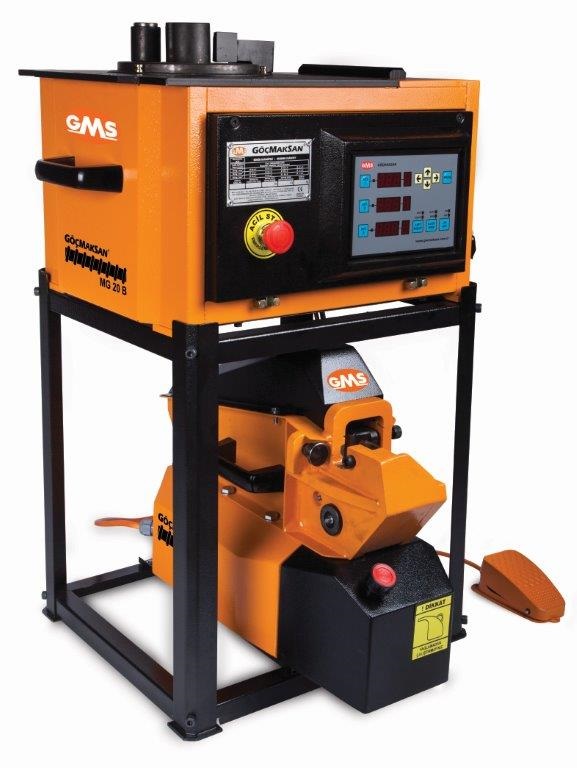

The RMCS MG20HB Package Includes the MG20B 220 Volt Mechanical Rebar Bending Machines and the MG20H 220 Volt Hydraulic Rebar Cutting Machine
The RMCS MG20HB Rebar Bender is very operator friendly and extremely easy to use. At a light weight of 59 kilograms, it is portable and can be moved around quite easily.
Rebar Bending is achieved via mechanical power transfer. The control system consists of an electrical automation system. This system enables the operator to make bending angle adjustments. Bending can be controlled manually or automatically and three bending angles can be pre-set at any one point in time.
MG20B Rebar Bender Specifications:
| Width | 45cm |
| Length | 60cm |
| Height | 32cm |
| Motor Power | 1,1 kw |
| Operating Volts | 220V |
| Weight | 59Kgs |
Bending Capacity of the MG20B Rebar Bender:
| Steel Strength | Rebar Ømm & Number of Bars |
| 45 kg/mm² | Ø20 x 1 Ø16 x 1 Ø12 x 3 Ø10 x 4 |
| 65 kg/mm² | Ø16 x 1 Ø12 x 2 Ø10 x 3 Ø8 x 4 |
| 85 kg/mm² | Ø12 x 1 Ø10 x 2 Ø8 x 3 Ø6 x 5 |
Standard Equipment supplied with the MG20B Rebar Bender:
- 2 Straight Pin
- 1 Fixed Pin
- 1 Fixed Shim
- 2 Straight Pin
- 3 Stirrup Heads
- 3 Bending Sleeves
- 3 Switch Pins
- 1 Zero Adjustment Pin
- 1 Foot Pedal
- 1 Table
MG20H 220 Volt Hydraulic Rebar Cutting Machine
The RMCS MG20H Rebar Cutter is very operator friendly and extremely easy to use. With the cutter weighing 48 kilograms and the power pack only weighing 6 kilograms, it is portable and can be moved around quite easily.
Rebar Cutting is achieved via a hydraulic power pack and operated by using a foot switch. Designed to ensure safety and to maximise power savings. Easy to maintain and requires minimum maintenance. The MG20H is ideal for on-site work, because of it’s portability.
The versatile MG20H can also be utilised to cut round bar, square bar and flat bar.
MG20H Rebar Cutter, Cutting Capacity:
| Steel Strength | Rebar Ømm & Number of Bars |
| 45 kg/mm² | Ø20 x 1 Ø16 x 1 Ø12 x 2 Ø10 x 3 |
| 65 kg/mm² | Ø16 x 1 Ø12 x 1 Ø10 x 2 Ø8 x 3 |
| 85 kg/mm² | Ø12 x 1 Ø10 x 2 Ø8 x 2 Ø6 x 3 |
MG20H Rebar Cutter Weight and Dimensions:
| Weight | 48Kgs |
| Width | 25cm |
| Length | 53cm |
| Height | 43cm |
MG20H Power Pack Weight and Dimensions:
| Weight | 6Kgs |
| Width | 21cm |
| Length | 29cm |
| Height | 18cm |
MG20B Motor Specifications
| Motor Power | 1,1 kw |
| Operating Volts | 220/230V |
| Motor Frequency | 50 Hz |
| Oil Tank | 4 Liters |
Standard Equipment supplied with the MG20B Rebar Cutter:
- 1 x 10mm Allen Key
- 1 x 500cc Grease Pump
- 2 off 35x35x12mm Blades
