Description
Product Code: MG20H

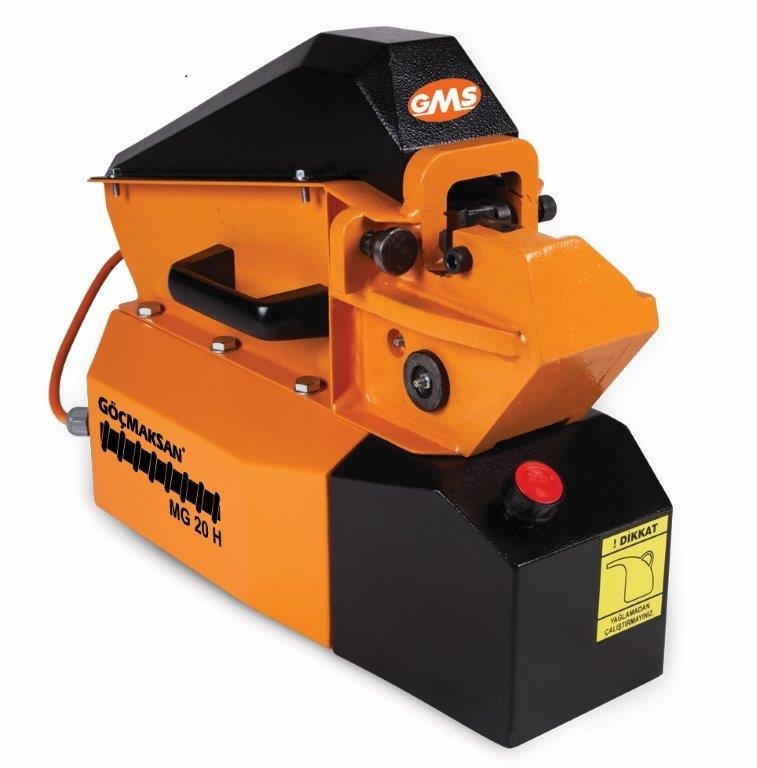

The RMCS MG20H Rebar Cutter is very operator friendly and extremely easy to use. With the cutter weighing 48 kilograms and the power pack only weighing 6 kilograms, it is portable and can be moved around quite easily.
Rebar Cutting is achieved via a hydraulic power pack and operated by using a foot switch. Designed to ensure safety and to maximise power savings. Easy to maintain and requires minimum maintenance. The MG20H is ideal for on-site work, because of it’s portability.
The versatile MG20H can also be utilised to cut round bar, square bar and flat bar.
MG20H Rebar Cutter, Cutting Capacity:
| Steel Strength | Rebar Ømm & Number of Bars |
| 45 kg/mm² | Ø20 x 1 Ø16 x 1 Ø12 x 2 Ø10 x 3 |
| 65 kg/mm² | Ø16 x 1 Ø12 x 1 Ø10 x 2 Ø8 x 3 |
| 85 kg/mm² | Ø12 x 1 Ø10 x 2 Ø8 x 2 Ø6 x 3 |
MG20H Rebar Cutter Weight and Dimensions:
| Weight | 48Kgs |
| Width | 25cm |
| Length | 53cm |
| Height | 43cm |
MG20H Power Pack Weight and Dimensions:
| Weight | 6Kgs |
| Width | 21cm |
| Length | 29cm |
| Height | 18cm |
MG20B Motor Specifications
| Motor Power | 1,1 kw |
| Operating Volts | 220/230V |
| Motor Frequency | 50 Hz |
| Oil Tank | 4 Liters |
Standard Equipment supplied with the MG20B Rebar Cutter:
- 1 x 10mm Allen Key
- 1 x 500cc Grease Pump
- 2 off 35x35x12mm Blades
